Your Guide to a DICOM Viewer for Mac in Dentistry
For dental professionals operating on Apple hardware, viewing and analyzing complex 3D scans requires more than standard software. While macOS is lauded for its security and intuitive design, a dedicated DICOM viewer for Mac is essential for interpreting the rich data from a Cone Beam Computed Tomography (CBCT) scanner.
This software functions as a clinical translator, taking the universal language of medical imaging and decoding it to provide the clarity needed for precise diagnostics and meticulous treatment planning for dental implants.
Why Your Mac Needs a Specialized DICOM Viewer
Integrating the right DICOM viewer into your clinical workflow is a foundational step toward achieving the precision demanded by modern implant dentistry. A Mac's default image viewers cannot process the complex, multi-layered information within a DICOM file, which is a comprehensive dataset, not just a picture.
Beyond Standard Image Viewing
A standard image viewer displays a single, flat slice of a scan, lacking the tools for clinically meaningful interaction. In contrast, a specialized DICOM viewer unlocks the full diagnostic potential of CBCT scans.
It enables clinicians to:
- Navigate through axial, coronal, and sagittal planes to assess anatomical structures from every angle.
- Render full 3D models to evaluate bone volume and patient anatomy, critical for accurate implant placement.
- Perform precise measurements of bone height, width, and density—all key factors for successful osseointegration.
- Trace vital structures, like the inferior alveolar nerve, to plan surgery with confidence and mitigate risks.
This level of detail is non-negotiable when planning procedures with advanced systems like the Alfa Gate TRIO implant, where optimal placement is paramount for long-term clinical success.
The Growing Trend in Clinical Practice
The preference for Apple devices in dental practices is a deliberate choice for reliable and secure platforms. This trend has spurred the development of powerful DICOM software built specifically for macOS. A 2023 survey in Germany revealed that approximately 28% of diagnostic imaging centers reported using Mac-based systems for image review. You can read more about these trends in the full research from MedTech Europe. This shift underscores the growing recognition of Macs as high-performance tools in diagnostics.
A dedicated DICOM viewer transforms a Mac from a general-purpose computer into a powerful diagnostic station. It provides the analytical depth required to move from a 2D assessment to a comprehensive 3D treatment plan, directly impacting the predictability and safety of dental implant procedures.
By equipping your Mac with the right software, you establish a robust environment for everything from initial diagnosis to planning fully guided surgery. This foundation is crucial for integrating digital tools and achieving superior patient outcomes. For a deeper dive into these workflows, review our guide on the complete digital workflow for precision implantology.
Understanding DICOM: The Language of Medical Imaging
To appreciate the need for a specialized DICOM viewer for Mac, it is important to understand what a DICOM file is. A JPEG is like a photograph of a finished building—it shows the final appearance but lacks the data needed for construction. A DICOM file, however, is the complete architectural blueprint, containing every measurement, material specification, and structural detail.
More Than Just a Picture
DICOM stands for Digital Imaging and Communications in Medicine. It is a universal standard ensuring that medical images from any device, such as a CBCT scanner, can be opened and interpreted correctly on any compatible system. It serves as the common language for medical imaging technology.
Unlike a simple JPEG or PNG, a DICOM file is a rich data container that bundles raw visual information with essential metadata. This "blueprint" information gives the image its clinical power and diagnostic reliability.
The Power of Embedded Metadata
This integrated data makes DICOM the gold standard for medical imaging. It is a highly structured set of information permanently attached to the image series, providing critical context and meaning.
Key metadata includes:
- Patient Information: Name, date of birth, and patient ID to ensure the scan is always linked to the correct individual.
- Acquisition Parameters: Details on the scanner, exposure settings, and the exact time of the scan, crucial for quality control.
- Spatial Coordinates: Precise information on the orientation and position of each image slice in relation to the patient's anatomy.
The spatial data is a game-changer for implant dentistry. It guarantees that every measurement taken within the viewer—be it bone height, width, or distance to a nerve—is a true 1:1 reflection of the patient's anatomy. This is non-negotiable for clinical safety and proper legal documentation.
A DICOM file provides a calibrated, measurable, and diagnostically sound dataset of the jaw. Without its embedded data, any measurements would be estimations, rendering the scan clinically insufficient for precise procedures like dental implant placement.
Why Your Mac’s Standard Viewer is Insufficient
It is clear why a DICOM file cannot be opened in macOS’s Preview app or a photo editor. These programs are designed to display pixels and cannot decode the complex, layered dataset that defines a patient’s anatomy in three dimensions.
They cannot read the metadata, reconstruct 2D slices into a 3D volume, or provide the necessary planning tools. A dedicated DICOM viewer is the only software built to parse the metadata, stack the slices into a navigable 3D model, and provide the measurement tools required for a predictable surgical plan.
For any clinician working with advanced systems like the Alfa Gate implant portfolio, this precision is the foundation of a successful outcome. To explore the technical side of digital imaging further, read our article on CAD/CAM technology in modern dental labs.
What to Look For in a DICOM Viewer for Dental Implantology
When selecting a DICOM viewer for your Mac, the objective is not just to open a CBCT file but to acquire a toolkit that facilitates safer, more predictable implant surgeries. The right software transforms raw scan data into an actionable roadmap for every case.
The evaluation comes down to a few non-negotiable features essential for a modern implant workflow. These tools provide a deep understanding of patient anatomy, bone quality, and the relationships between critical structures, enabling confident decision-making.
Multi-Planar Reconstruction and 3D Rendering
The foundation of any effective DICOM viewer is Multi-Planar Reconstruction (MPR). This feature allows you to digitally slice through the patient's jaw in any direction—axially, sagittally, or coronally—providing a comprehensive understanding of the surgical site. For instance, you can measure the exact bone height above the inferior alveolar nerve before planning an implant in the lower jaw, a critical safety step.
Working in conjunction with MPR is 3D Volume Rendering. The software stitches all 2D slices into a fully interactive 3D model of the jaw. This macroscopic view is invaluable for assessing bone morphology, identifying anatomical variations, and explaining the treatment plan to the patient.
Precise Measurement and Planning Tools
Implant dentistry requires precision to the millimeter, making accurate measurements essential. Your Mac DICOM viewer must include a robust set of measurement tools.
You will use these tools frequently:
- Linear Measurement: For calculating bone height and width to ensure the selected implant will fit.
- Angular Measurement: For checking the angulation of adjacent teeth or planning the ideal implant trajectory.
- Bone Density Assessment: Many viewers can estimate bone quality using Hounsfield Units (HU), which helps predict primary implant stability and guides the drilling protocol.
One of the most critical planning features is the ability to trace nerve canals. Marking the path of the inferior alveolar nerve provides a visual safety margin, which is fundamental for preventing nerve damage during surgery.
These tools are the building blocks of your entire digital surgical plan.
Feature Checklist for a Dental DICOM Viewer on Mac
| Feature Category | Core Functionality | Clinical Importance in Implantology |
|---|---|---|
| Viewing & Navigation | Multi-Planar Reconstruction (MPR) | Allows for precise cross-sectional analysis of bone height, width, and proximity to vital structures like nerves and sinuses. |
| 3D Volume Rendering | Provides a holistic view of the jaw's anatomy, crucial for patient communication and identifying overall bone morphology. | |
| Measurement & Analysis | Linear & Angular Tools | Essential for selecting the correct implant size and planning the optimal insertion angle to avoid anatomical obstacles. |
| Bone Density (HU) Measurement | Helps predict primary implant stability and informs the drilling protocol, leading to better osseointegration outcomes. | |
| Nerve Canal Tracing | A critical safety feature to map the inferior alveolar nerve, drastically reducing the risk of iatrogenic injury. | |
| Workflow Integration | STL File Export | The bridge between digital planning and surgery. Without it, you can't fabricate a surgical guide from your plan. |
| Implant Planning Library | Allows you to place virtual implants from specific manufacturers (like Alfa Gate) directly onto the 3D model for a precise fit. | |
| Collaboration & Security | DICOM Send/Receive | Facilitates easy and secure sharing of scans and plans with dental labs, specialists, or referring dentists. |
| HIPAA/GDPR Compliance | A non-negotiable for protecting patient data and ensuring your practice meets legal and ethical standards. |
This checklist covers the fundamental viewing tools and the advanced features that make a significant clinical difference.
Seamless Export for Surgical Guide Fabrication
Perhaps the most critical feature is the ability to translate your plan into the surgical procedure. A top-tier DICOM viewer must convert your planned case into an STL (stereolithography) file, the universal language for 3D printers and CAD/CAM systems.
Exporting to STL is the essential step that allows you or your lab to fabricate a custom surgical guide. This guide translates your digital plan into reality, ensuring the implant is placed at the exact depth, location, and angulation you determined. This process makes surgery faster, more predictable, and safer for the patient.
By ensuring your Mac DICOM viewer has these key features, you are acquiring an active partner in your clinical workflow—one that helps you achieve the precision that defines modern implantology. Ready to bring these digital tools into your practice? Contact us to see how Alfa Gate’s system can support your digital journey from start to finish.
Creating a Seamless Digital Workflow with Alfa Gate
Having the right features in a dicom viewer for mac is important, but integrating it effectively into your daily clinical practice is where true value is realized. Your Mac-based software can serve as the central hub for the Alfa Gate ecosystem, creating a smooth and accurate path from the initial scan to final implant placement.
The process begins when a patient’s CBCT scan is imported into your viewer from a USB drive, network, or patient file. Once loaded, the 3D planning phase commences, where measurement and visualization tools are used to map out a precise surgical strategy.
Case Study: Planning an Alfa Gate Implant
Consider a common scenario: planning a molar replacement in the posterior mandible. After importing the DICOM files, the Multi-Planar Reconstruction (MPR) view is used to assess available bone. You would measure crestal width and the vertical height from the alveolar ridge to the inferior alveolar nerve canal, which should be carefully traced.
This analysis determines if immediate implant placement is viable or if bone regeneration is required first. Assuming adequate bone, you can select the appropriate implant from the viewer’s digital library.
For this case, an Alfa Gate TRIO implant might be chosen for its excellent primary stability in various bone densities. A virtually sized implant can then be placed into the 3D model, adjusting its angle to align perfectly with the restorative plan while avoiding anatomical structures. This virtual placement allows for a data-driven approach, turning planning from an estimation into a precise science.
From Digital Blueprint to Physical Reality
The most critical step is translating the digital plan into a physical surgical guide. This requires converting the plan from DICOM format into an STL file that a 3D printer can interpret.
An STL (stereolithography) file is the universal format for 3D printing. In implantology, it serves as the digital blueprint for the surgical guide, containing all geometric data for the implant drill's location, angle, and depth.

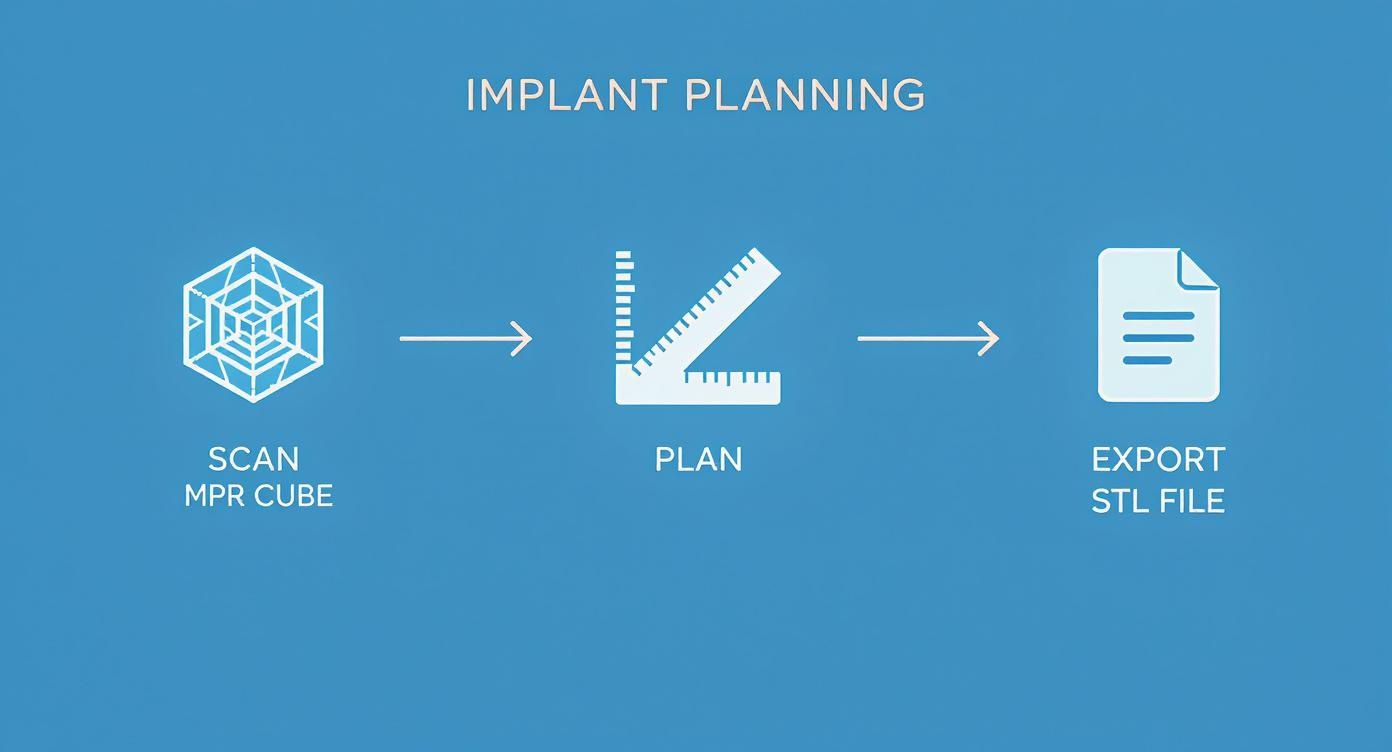

This chart illustrates the core steps of the implant planning workflow.
Each stage builds upon the last, ensuring the final guide is a perfect physical replica of the digital plan.
Once the STL file is exported from your dicom viewer for mac, it can be sent to an in-house 3D printer or a dental lab. They will fabricate the surgical guide, which fits over the patient’s teeth and directs the drill to the exact spot planned. This seamless workflow reduces chair time and enhances the predictability of surgical outcomes.
A Look at the Top DICOM Viewers for Mac
Choosing the right dicom viewer for mac depends on your practice's specific needs, budget, and required features. Options range from powerful open-source programs to premium, clinically certified solutions. A proper evaluation should focus on user interface intuition, 3D rendering quality, dedicated implant planning tools, and STL export reliability.
Open-Source Starting Points: Horos and OsiriX Lite
For Mac users, the conversation often begins with two related open-source viewers: Horos and OsiriX Lite. Horos is a free, open-source software known for its robust features and active user community. It handles MPR and 3D volume rendering effectively, making it an excellent starting point for dental students or budget-conscious clinics.
OsiriX Lite is the free version of the commercial OsiriX MD software. While it shares a core engine with Horos, many advanced features are locked behind a paid upgrade. Both are suitable for basic CBCT review and measurements but typically lack the specialized dental implant planning modules found in premium software.
It is crucial to note that while free, open-source software is highly capable, it may not have official regulatory clearance (e.g., CE or FDA approval), which can be a significant consideration for clinical use.
Premium and Specialised Software Options
For practices requiring advanced features, certified diagnostic tools, and professional support, premium software is the logical choice. These programs are developed for clinical environments and often include modules designed specifically for implantology.
Benefits of premium software include:
- Certified for Clinical Use: FDA and CE clearance provides assurance that the software meets strict quality and safety standards.
- Integrated Implant Libraries: These allow virtual placement of specific implants, such as those from the Alfa Gate implant system, for precise planning.
- Advanced Surgical Guide Design: Many paid options offer sophisticated tools for designing and exporting accurate surgical guides.
- Dedicated Customer Support: Access to technical help is invaluable when integrating new software into a busy clinic.
What's Happening in the German Market?
Market trends reflect the choice between free and paid software. In Germany, as more practices adopt Mac-based systems, there has been a clear preference for accessible solutions. A 2024 report showed that Horos, a free dicom viewer for mac, was installed in over 35% of German imaging centers running on Apple hardware. You can dig deeper into these trends and discover more insights about DICOM viewer usage on slashdot.org. This data indicates a demand for tools that are both powerful and cost-effective.
Ultimately, the best software is one that fits your practice's needs. A dental student will find Horos sufficient for learning, while a high-volume implant clinic will benefit from the efficiency and certification of a premium solution.
Navigating Security and Patient Data Compliance on macOS
Protecting patient data is a non-negotiable legal and ethical responsibility in modern dentistry. When using a DICOM viewer for Mac, this responsibility extends to your digital workspace, which must comply with frameworks like GDPR and HIPAA. The macOS platform provides a secure foundation, but it is only one part of the solution.
Safeguarding sensitive information ultimately depends on the clinician's adherence to best practices and the selection of software from reputable developers who prioritize data protection.
Building a Secure Digital Environment
Your first line of defense is the software you choose. Established developers provide regular security updates, clear privacy policies, and features designed to protect data. While open-source software is powerful, it may lack the official support and regulatory certifications needed for clinical confidence.
It is also crucial to understand how your software handles patient data. Key questions to ask include:
- Data Encryption: Does the viewer encrypt patient data at rest (on the hard drive) and in transit (when sent to a lab)?
- Anonymisation Features: Can you easily remove personally identifiable information (PII) from DICOM files for case studies or presentations?
- Access Controls: Is your Mac protected with a strong password and set to lock after a period of inactivity?
Maintaining a secure digital environment is about upholding the trust your patients place in you. A data breach can cause irreparable damage to your practice’s reputation.
Meeting German and European Regulatory Standards
Germany’s healthcare system places a strong emphasis on data security, compelling developers to create DICOM viewers that meet high standards like the Medical Device Regulation (MDR) and GDPR. A 2023 report revealed that 72% of German imaging centers using Mac-based DICOM viewers had software certified for clinical use, meeting both national and EU regulations. You can get a broader view of the European medical imaging market on einnews.com. This trend indicates a clear industry shift toward verified, compliant software.
Wrapping It Up: Bringing Digital Precision to Your Practice
Transitioning to a fully digital workflow is a significant advancement for any dental practice. The cornerstone of this transition is a capable dicom viewer for mac. The right choice will pave the way for more predictable and successful patient outcomes.
We have covered the key features to look for, the importance of a smooth workflow with systems like Alfa Gate, and the necessity of robust security. By integrating these digital solutions, you position your practice at the forefront of patient care, transforming complex scans into clear, confident treatment plans.
The Power of a Fully Integrated Workflow
Adopting this technology represents a complete shift in how you plan and perform implant procedures. It provides a degree of precision previously unattainable, which translates to shorter surgery times, reduced patient discomfort, and improved final results.
Imagine a seamless process from a patient’s CBCT scan to a 3D-printed surgical guide, all managed from your Mac. This efficiency allows you to focus on what matters most: delivering exceptional clinical care.
Mastering a digital workflow ensures your meticulous on-screen planning becomes tangible, real-world accuracy. This alignment between the digital blueprint and the final implant placement is the essence of modern, evidence-based implantology.
Ultimately, a high-quality DICOM viewer unlocks the full potential of your diagnostic scans, leading to safer surgeries and superior, long-lasting outcomes that build your practice's reputation.
