All on 4 Dental Implantate: A Clinical Guide

For clinicians working with edentulous or soon-to-be edentulous patients, the All-on-4 treatment concept is a transformative full-arch rehabilitation protocol. It allows for the delivery of a fixed prosthesis supported by just four implants, often with a provisional restoration on the same day as surgery. This approach is built on sound biomechanical principles to ensure predictable and durable clinical outcomes.

Understanding the All on 4 Clinical Rationale

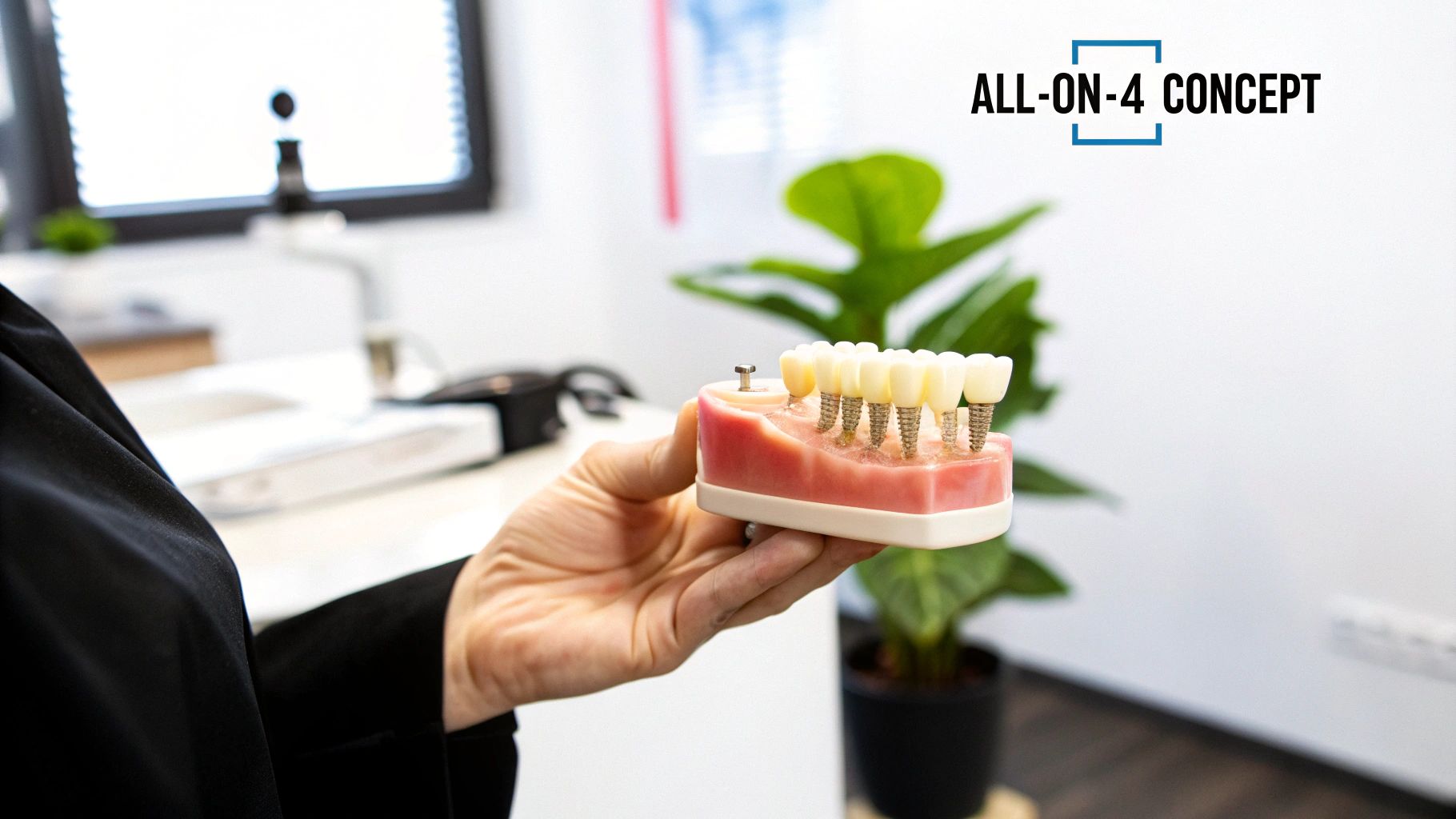

The All-on-4 concept reframed how we approach full-arch cases by focusing on strategic implant placement. The protocol leverages precise biomechanical and surgical principles to maximize the use of the patient's existing bone, particularly in the anterior maxilla or mandible where bone quality is typically superior.

This strategic placement is key to the technique's success. Two implants are placed axially in the anterior region, while the two posterior implants are tilted distally. This configuration creates a wider anteroposterior (AP) spread, which is critical for distributing occlusal loads and resisting the functional forces a full-arch prosthesis must withstand.

Key Biomechanical Advantages

The angled placement of the distal implants is what makes the protocol so effective. By tilting them up to 45 degrees, clinicians can anchor them in denser, higher-quality bone while avoiding vital structures like the maxillary sinus or the mental foramen. This often eliminates the need for complex bone grafting procedures such as sinus lifts or nerve repositioning.

This approach delivers several powerful clinical benefits:

• Enhanced Primary Stability: Angulation allows for the use of longer implants, increasing bone-to-implant contact. This is crucial for achieving the high primary stability required for immediate loading protocols.
• Reduced Treatment Time: Eliminating the grafting phase significantly shortens the overall treatment timeline, enhancing patient acceptance.
• Improved Load Distribution: A wider AP spread reduces cantilever forces on the final restoration, contributing to its long-term durability and biomechanical stability.

The ability to provide a fixed, full-arch restoration without extensive grafting procedures not only reduces patient morbidity but also makes advanced treatment accessible to a wider patient population. This efficiency is a defining feature of the modern implant practice.

Let’s summarize the foundational principles that make this protocol so effective from a clinical standpoint.

Core Principles of the All on 4 Technique

Principle	Clinical Rationale and Advantage
Four Implant Support	Minimizes surgical complexity and cost while providing robust support for a full-arch prosthesis.
Tilted Distal implants	Avoids critical anatomical structures and engages higher-quality anterior bone, often eliminating the need for grafting.
Increased A-P Spread	Distributes occlusal forces more effectively across the arch, reducing stress on the implants and prosthesis.
Immediate Loading	High primary stability from strategic placement allows for the delivery of a provisional bridge on the day of surgery.

These principles work synergistically to create a streamlined, predictable, and patient-centric solution for full-arch edentulism.

Clinical Outcomes in Practice

The All-on-4 technique has become a standard of care for full-arch tooth replacement, with clinics reporting high implant survival rates that align with international data. For example, a retrospective study reflecting European clinical practice found a cumulative implant survival rate of 89.7% over a mean follow-up of 6.5 years. While the same study noted that biological complications could be more frequent when compared to All-on-6 configurations, the All-on-4 protocol remains a highly popular and effective solution.

Its cost-effectiveness and less invasive nature, combined with high standards in dental imaging and surgery, make it a compelling choice. For a deeper dive into procedural specifics, our comprehensive dental implant surgery guide for dentists is an excellent resource. The ability to offer immediate loading is what solidifies this protocol's role in modern implantology, allowing patients to leave with a restored smile on the day of surgery.

Mastering Patient Selection and Diagnostics

A successful all on 4 dental implantate treatment is predicated on meticulous patient selection and diagnostics. This foundational phase goes beyond a cursory oral examination; it involves a comprehensive diagnostic process that balances patient expectations with clinical realities. Proper initial assessment mitigates risks, manages expectations, and sets the stage for a predictable outcome.

The initial patient consultation is paramount. This is the opportunity to understand their chief concerns, aesthetic goals, and psychological readiness for a significant dental transformation. It is here that we align their vision with clinical possibilities, explaining the entire treatment journey from surgery to the functional and aesthetic expectations of the final prosthesis.

Essential Inclusion and Exclusion Criteria

A systematic screening for both systemic and local factors is essential. While the All-on-4 protocol is versatile, it is not a universal solution. Certain health conditions can compromise osseointegration and healing, making a thorough medical history review non-negotiable.

The ideal candidate typically presents with:

• Sufficient Bone Volume: Adequate bone in the anterior mandible or maxilla is necessary to achieve the primary stability required for immediate loading.
• Good General Health: Patients should be free from uncontrolled systemic conditions, such as unmanaged diabetes or severe cardiovascular disease, that could complicate surgical healing.
• High Patient Motivation: The patient must be committed to maintaining excellent oral hygiene and adhering to follow-up schedules to ensure long-term success.

Conversely, clinicians must be vigilant for contraindications. Absolute and relative contraindications include active periodontal disease, heavy smoking, IV bisphosphonate therapy, and certain psychological conditions. Each case must be evaluated individually, balancing the clinical risks against the potential benefits.

The Role of Advanced Imaging and Digital Planning

Modern diagnostics for the All-on-4 protocol are driven by Cone Beam Computed Tomography (CBCT). This imaging technology provides a detailed three-dimensional view of the patient’s anatomy, enabling precise evaluation of bone quantity and quality.

With CBCT data, clinicians can accurately map the location of critical anatomical structures like the mandibular nerve and maxillary sinuses. This enables the virtual placement of implants to maximize bone engagement while ensuring patient safety.

This digital blueprint forms the basis of the treatment plan. Using specialized software, clinicians can simulate the surgery, select the appropriate implant type and dimensions, and design the surgical guide. For instance, Alfa Gate Bioactive implants are an excellent choice for their hydrophilic surface, which is engineered to promote faster and more predictable osseointegration—a significant advantage in immediate loading cases. The digital plan also allows for the pre-fabrication of the provisional prosthesis, ensuring a seamless surgical day experience.

Comprehensive Occlusal and Biomechanical Analysis

A successful All-on-4 restoration depends on a stable and balanced occlusion. A detailed analysis of the patient's existing occlusion, parafunctional habits (e.g., bruxism), and vertical dimension is essential. This analysis informs the design of the final prosthesis, helping to minimize stress on the implants and prevent mechanical complications such as screw loosening or component fracture.

By integrating these diagnostic steps—consultation, health assessment, advanced imaging, and biomechanical analysis—clinicians can create a highly predictable treatment roadmap. This detailed planning not only enhances safety and efficacy but also builds patient confidence. If you are looking to integrate these advanced workflows, connect with our team of specialists to discover how Alfa Gate can support your clinical objectives.

The Surgical Workflow: From Planning to Placement

The surgical workflow translates the detailed digital plan into a clinical reality. The all on 4 dental implantate protocol is a meticulous process where every step is optimized to achieve the high primary stability necessary for immediate loading.

The process begins with the use of a high-precision, CAD/CAM-fabricated surgical guide. This guide serves as a physical template, translating the virtual implant plan into the patient's anatomy. It dictates the exact location, angulation, and depth of each osteotomy, removing guesswork and enhancing surgical accuracy.

From Guide to Osteotomy

Once the surgical guide is securely positioned, bone preparation begins. A full-thickness mucoperiosteal flap is typically raised to provide clear visibility of the surgical site. This allows for any necessary alveoloplasty to create a smooth bone foundation for the final prosthesis.

The drilling sequence follows a prescribed, step-by-step protocol using sharp drills and copious irrigation to prevent thermal damage to the bone, which could compromise osseointegration. Each drill progressively widens the osteotomy to the final dimensions required for the selected implant.

The angulation of the distal implants is a cornerstone of the All-on-4 technique. By tilting them up to 45 degrees, we can anchor them in the denser cortical bone found in the anterior maxilla or between the mental foramina. This maximizes primary stability and avoids critical anatomical structures.

This strategic angulation not only enhances biomechanical support by increasing the anteroposterior spread but also allows for the placement of longer implants, maximizing bone-to-implant contact.

A thorough diagnostic process—health assessment, bone evaluation, and a digital plan—is the foundation for this level of surgical precision. As illustrated, each diagnostic step informs the next, culminating in a comprehensive digital plan that guides the entire surgical procedure.

Implant Selection and Placement Technique

Selecting the right implant is critical for immediate loading. Implant systems featuring aggressive thread designs and tapered bodies—like those offered by Alfa Gate—are engineered to condense bone during placement. This design provides excellent mechanical stability, even in compromised bone quality.

During placement, insertion torque is a key indicator of primary stability. A torque value of at least 35 Ncm is generally considered the threshold for immediate loading protocols. This confirms that the implant is stable enough to support the forces from a provisional prosthesis. The surgical workflow can be summarized in these key stages:

1. Anesthesia and Incision: Adequate local anesthesia is administered, followed by a clean incision to expose the alveolar bone.
2. Guide Placement and Verification: The surgical guide is seated and verified for stability and correct alignment with the patient's anatomy. For clinicians seeking the highest level of precision, the Alfa Gate Guided Surgical Kit provides an integrated and reliable solution.
3. Sequential Drilling: Osteotomies are created following the drilling protocol, with careful attention to the specific angulation for the distal implants.
4. Implant Insertion: The selected implants are placed into the prepared sites until the planned depth and target insertion torque are achieved.
5. Abutment Placement: Multi-unit abutments are attached to the implants, serving as the connection points for the provisional prosthesis.
6. Suturing: The flap is repositioned and sutured around the abutments to facilitate optimal soft tissue healing.

Following this structured workflow allows clinicians to execute the All-on-4 surgery with confidence and predictability, ensuring the biomechanical principles from the planning phase are realized.

Executing the Prosthetic Workflow

While the surgical phase establishes the foundation, the prosthetic workflow is where an all on 4 dental implantate treatment is fully realized. A seamless transition from surgery to restoration is critical for delivering the functional and aesthetic outcomes patients expect. This process begins immediately post-surgery with the fabrication and delivery of a provisional prosthesis.

The provisional restoration serves multiple functions: it provides immediate aesthetics and function, and it acts as a passive splint, stabilizing the implants during the critical osseointegration phase. This can be fabricated directly via a chairside conversion or indirectly in a dental laboratory.

From Immediate Provisional to Definitive Prosthesis

Whether fabricated chairside or in a lab, the immediate provisional must have a completely passive fit. This means it seats without exerting any lateral or rotational forces on the newly placed implants. The process typically involves luting temporary cylinders to a pre-fabricated acrylic shell intraorally.

After a healing period of three to six months to allow for osseointegration, the focus shifts to the definitive prosthesis. This final restoration is engineered for long-term durability, optimal function, and superior aesthetics. The first step in this phase is the final impression, where precision is paramount.

A verified impression is the cornerstone of a passive-fitting definitive prosthesis. Using an open-tray technique with splinted impression copings is a reliable method to capture the exact three-dimensional position of each implant and its corresponding abutment.

An accurate master cast serves as the blueprint for the final restoration, ensuring it seats without introducing stress into the system. An ill-fitting prosthesis is a primary cause of mechanical complications, such as screw loosening or fracture.

Navigating Material Choices and Prosthetic Components

The selection of materials for the final prosthesis requires balancing aesthetics, durability, and patient-specific factors like parafunctional habits. While PMMA is suitable for provisional restorations, definitive prostheses are fabricated from more robust materials.

High-quality, precision-engineered components streamline the workflow and enhance predictability. For instance, components like Alfa Gate Straight Multi-Unit abutments provide a stable and reliable foundation for the final restoration. They are designed to correct implant angulation and create a common restorative platform, simplifying both impression-taking and final delivery.

The choice of material for the final restoration is a key decision point, balancing aesthetics, strength, and budget. Here’s a quick look at the most common options.

Material Comparison for All on 4 Final Restorations

Material	Aesthetics	Durability & Strength	Repairability	Cost Factor
Monolithic Zirconia	Excellent	Very High	Difficult	High
Titanium Bar with Acrylic	Good	Moderate	Good	Moderate
PEEK Framework with Composites	Very Good	Good (shock absorbing)	Excellent	High
Titanium Bar with Zirconia	Excellent	Very High	Difficult	Very High

The optimal material choice depends on the specific clinical situation, occlusal scheme, and patient expectations.

Digital vs Conventional Workflows

Digital technology now offers a powerful alternative to traditional impression techniques. Intraoral scanners can capture implant positions with high accuracy, eliminating the need for impression materials and physical models. The digital file is imported into CAD software for prosthesis design and then sent for CAM milling or printing.

This digital workflow not only increases precision but can also improve efficiency and patient comfort. Regardless of the fabrication method, the final design must incorporate a carefully planned occlusal scheme. For full-arch cases, a lingualized or bilateral balanced occlusion is often recommended to distribute forces evenly and reduce off-axis loads on the implants, which is vital for the long-term success of any all on 4 dental implantate treatment.

Managing Complications and Ensuring Long-Term Success

The completion of an all on 4 dental implantate restoration is a significant clinical achievement, but long-term success depends on a proactive strategy for managing potential complications and a robust maintenance plan. This requires clinical vigilance and effective patient education.

Complications are typically categorized as either biological or mechanical. Biological complications, primarily peri-implantitis, represent the most significant threat to long-term implant health. Mechanical issues may include screw loosening or prosthesis fracture. Acknowledging these risks is the first step toward prevention.

Preventing Biological Complications

The prevention of peri-implant disease begins with prosthetic design. The final prosthesis must be designed for cleansability, featuring a smooth, convex intaglio surface that allows for effective oral hygiene access. Sufficient space for interdental brushes and water flossers is a critical design feature.

Patient education is equally important. Clinicians must provide clear, hands-on instruction for their daily home-care regimen, which typically includes:

• Specialized Brushing: Using soft-bristled brushes angled toward the gingival margin and under the prosthesis.
• Interdental Cleaning: Demonstrating the use of tools like water flossers, implant-specific floss, or interdental brushes to disrupt biofilm.
• Antimicrobial Rinses: Recommending rinses as an adjunct to mechanical cleaning, particularly in the post-operative period or for high-risk patients.

A well-informed patient who understands their role in maintenance is your greatest asset. Consistent and effective home care is the most critical factor in preventing peri-implant inflammation and ensuring tissue health.

Addressing Mechanical Challenges

Mechanical complications often stem from occlusal overload or a non-passive prosthetic fit. Even minor discrepancies can create stress, leading to screw loosening or material fatigue. Regular occlusal analysis during follow-up appointments is essential to identify and adjust for wear patterns before they cause problems.

Screw loosening is a common mechanical issue. If it occurs, the prosthesis should be removed, cleaned, and the screw retightened to the manufacturer’s recommended torque specification. Using high-quality components, such as the precision-milled prosthetics from Alfa Gate, helps prevent these issues by ensuring a secure and stable fit. For a deeper clinical perspective, review our article on managing and preventing peri-implantitis.

Establishing a Long-Term Maintenance Protocol

A structured recall schedule is the foundation of long-term success. Patients should be seen for professional maintenance at least once or twice a year, depending on their individual risk profile.

During these appointments, the clinician or hygienist should:

1. Assess Clinical Parameters: Perform peri-implant probing, check for bleeding on probing, and evaluate soft tissue health.
2. Evaluate Prosthesis Integrity: Verify screw tightness and inspect the prosthesis for signs of wear or fracture.
3. Perform Professional Cleaning: Use implant-safe instruments (e.g., titanium or carbon fiber curettes) to remove calculus and biofilm from the abutments and prosthesis.
4. Review Home Care: Reinforce proper cleaning techniques and provide customized recommendations.

By implementing a comprehensive maintenance plan, clinicians can proactively manage risks and partner with patients to protect their investment. To integrate these protocols, contact an Alfa Gate representative to discuss our educational resources and product solutions.

A Closer Look at the German All-on-4 Market

For clinicians and distributors in Germany, understanding the market dynamics for All-on-4 dental implantate solutions is crucial for strategic growth. This trend is driven by economic factors, patient demographics, and the high technological standard of the country's healthcare system.

Germany represents one of Europe's largest markets for implantology, presenting significant opportunities. Patient out-of-pocket costs and the structure of public versus private insurance heavily influence treatment acceptance. While statutory health insurance (GKV) provides basic coverage, a strong private insurance market and a population willing to invest in high-quality care create a strong demand for premium treatments like the All-on-4 concept.

Key Factors Fueling Demand

German patients are discerning, valuing durability, aesthetics, and efficiency. This preference creates a favorable environment for innovative, less invasive procedures. Clinicians can effectively communicate the benefits of the All-on-4 protocol, such as shorter treatment times and the avoidance of complex bone grafting.

Several factors are driving the demand for full-arch solutions:

• An Ageing Population: Germany's demographic profile includes a large and aging population, leading to a higher prevalence of edentulism and a greater need for reliable full-arch restorations.
• High Aesthetic Expectations: Patients increasingly seek solutions that offer natural aesthetics and immediate results, making the immediate loading aspect of All-on-4 highly attractive.
• Digital Dentistry Adoption: The widespread integration of digital technologies—from CBCT planning to CAD/CAM prosthetics—aligns perfectly with the precision required for successful All-on-4 cases, enhancing predictability and clinical outcomes.

The German dental implant market is projected to reach US$ 639.8 million by 2030, with a compound annual growth rate (CAGR) of 7.2% from 2025. This highlights Germany's central role in the adoption of advanced implant solutions. You can read the full research on the German dental implant market to better understand these trends.

Strategic Positioning for Success

To capitalize on this growth, clinicians and distributors must align their offerings with market demands. For dentists, this means communicating the value of All-on-4 as a durable, aesthetic, and efficient investment in a patient's quality of life. For distributors, the focus should be on providing exceptional support, from technical education to reliable prosthetic components that streamline the clinical workflow.

High-quality systems, such as Alfa Gate’s Bioactive implants designed for enhanced osseointegration, meet the high standards expected by German dental professionals. By focusing on systems that support predictable immediate loading and deliver excellent long-term stability, practices can confidently meet market demands.

This expanding market presents a clear opportunity for partnership and growth. Distributors looking to add a trusted, high-performance implant system to their portfolio should consider this potential. Become a Distributor and partner with Alfa Gate to tap into the German dental market.

Your Questions, Answered

As clinicians delve into the all on 4 dental implantate protocol, specific clinical questions often arise. Here are answers to some of the most common inquiries from dental professionals.

All-on-4 vs. All-on-6: What's the Clinical Difference?

The distinction goes beyond the number of implants. The All-on-4 protocol utilizes four implants, with the posterior two angled to maximize bone engagement and avoid critical anatomical structures. This often allows clinicians to avoid major grafting procedures, even in cases of moderate bone resorption.

The All-on-6 concept adds two posterior implants to create a broader base for distributing occlusal forces. It is often indicated for patients with a larger arch or significant bite forces. The decision is a matter of clinical judgment based on a thorough biomechanical and anatomical assessment of each individual case.

The choice between All-on-4 and All-on-6 is a strategic clinical decision based on bone availability, arch size, and the patient's occlusion to ensure long-term prosthetic and implant stability.

Is Every Edentulous Patient a Candidate?

Not necessarily. While the All-on-4 concept is highly versatile, it is not a universal solution. The ideal candidate must have sufficient bone volume and quality in the anterior jaw to achieve the high primary stability necessary for immediate loading.

Clear contraindications must also be considered. Uncontrolled systemic diseases, active oral infections, or heavy smoking can compromise healing and osseointegration. A comprehensive evaluation, including a CBCT scan, is mandatory to confirm anatomical suitability. For more information on component selection, our guide to prosthetic workflows offers valuable insights.

What Is the Typical Cost in Germany?

In Germany, the cost of a single standard dental implant typically starts around €1,046. A full All-on-4 treatment represents a more significant investment, with the final cost influenced by the materials used, clinic location, and any required adjunctive procedures.

It is also important to manage patient expectations regarding insurance coverage. While German health insurance may cover a basic implant in specific scenarios, premium full-arch restorations like All-on-4 are rarely covered in full, making cost a key discussion point. You can find more detail on dental implant pricing in Germany here.

---

For over 28 years, Alfa Gate has been dedicated to developing innovative and reliable implant systems that enable advanced protocols like the All-on-4 treatment concept. To explore our full portfolio of implants, prosthetics, and digital solutions designed for clinical success, please get in touch with us today.
