A Modern Guide to CAD CAM Zahntechnik in Dentistry

The paradigm of dental restorations has shifted. The traditional, hands-on artistry of waxing and casting is being replaced by a digital architect and a robotic sculptor working in perfect synchrony. This is the reality of CAD/CAM in dental technology, a digital transformation that has fundamentally reshaped modern dental laboratory workflows. This evolution from analog to digital processes delivers unprecedented accuracy, efficiency, and predictability in restorative dentistry.

The Digital Shift in Modern Dental Laboratories

At its core, CAD/CAM integrates Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) into the creation of dental prosthetics. It replaces conventional manual techniques with a controlled, repeatable digital process. This transition is analogous to moving from hand-drawn architectural blueprints to sophisticated design software, offering a level of precision that was previously unattainable.

The digital workflow is built upon three foundational pillars: scanning, designing, and manufacturing. Each step logically follows the last, culminating in a final restoration that offers superior fit and esthetics. This precision is especially critical for complex cases, such as multi-unit implant-supported bridges or full-arch frameworks, where minute inaccuracies can lead to significant clinical complications.

Core Components of the Digital Workflow

The journey from patient to final restoration follows a clear, technology-driven path.

• Scanning (Data Acquisition): The process begins with creating a precise 3D model of the patient’s dentition. This can be achieved directly in the clinic using an intraoral scanner or in the laboratory by scanning a conventional impression. This digital impression serves as the accurate foundation for the entire workflow.

• Designing (The CAD Phase): Using the digital scan, a dental technician employs specialized software to design the restoration. This phase allows for meticulous control over every parameter, including margin line definition, occlusal contacts, and anatomical contours, with a degree of precision impossible to achieve manually.

• Manufacturing (The CAM Phase): Once the design is approved, the digital file is sent to a milling machine or a 3D printer. This automated equipment fabricates the restoration by either carving it from a solid block of material or building it layer-by-layer, precisely translating the digital design into a physical object.

This systematic process significantly reduces the potential for human error inherent in traditional casting and layering techniques. Furthermore, it enables the use of advanced restorative materials that are difficult or impossible to process manually, expanding the range of clinical solutions. A review of Alfa Gate CAD CAM components demonstrates how seamlessly these digital-ready prosthetics integrate into this streamlined system.

Ultimately, this digital transformation benefits all stakeholders. Laboratories achieve enhanced productivity and consistency. Clinicians receive restorations with predictable outcomes and fewer chairside adjustments. The final result is improved patient care and satisfaction.

Navigating the Complete Digital Workflow

The creation of a modern dental restoration with CAD/CAM technology is not magic; it is a meticulously structured, three-part process. It begins with precise data acquisition, moves to a virtual design phase, and concludes with automated fabrication. Each step is critical to achieving the levels of accuracy and efficiency that define contemporary digital dentistry.

This infographic illustrates the seamless integration of scanning, designing, and manufacturing in a typical CAD/CAM workflow.

This demonstrates the conversion of physical data from the patient's oral environment into a digital design space, which is then translated back into a physical object—the final restoration. This highly controlled progression nearly eliminates the guesswork and potential errors of manual fabrication.

The First Step: Digital Impression Taking

The workflow begins with a digital impression, the modern alternative to conventional PVS materials. Using an intraoral scanner, clinicians can capture a highly accurate 3D model of the patient’s teeth and soft tissues, typically within minutes.

This represents a significant clinical advancement. Patient comfort is improved by eliminating gag-inducing impression trays, and chair time is reduced. For the dental team, the immediate availability of a distortion-free digital model allows for instantaneous transfer to the laboratory.

Market data reflects this trend. Germany's dental laboratory market, a key indicator of CAD/CAM adoption, was valued at USD 51.60 billion in 2024 and is projected to reach USD 87.34 billion by 2032. The scanner segment is a primary driver, with a forecasted CAGR of 20.1% from 2025 to 2032, signaling a strong industry commitment to accuracy and efficiency.

The CAD Phase: A Blueprint for Perfection

Following data acquisition, the process moves to the Computer-Aided Design (CAD) phase. Here, a skilled dental technician utilizes specialized software to design the restoration with microscopic precision.

This is the translational stage where clinical requirements are converted into a functional and esthetic blueprint. Technicians meticulously define margin lines, verify occlusal clearances, establish ideal contact points, and sculpt the morphology to harmonize with the patient’s existing anatomy.

The software provides tools that far exceed the capabilities of traditional wax-ups, resulting in a perfect digital prototype. In implantology, this is the stage where components like digital analogs are virtually positioned to ensure the final prosthesis fits the master cast with absolute accuracy.

The CAM Phase: From Digital to Physical

The final stage is Computer-Aided Manufacturing (CAM), where the digital design is converted into a tangible object through either subtractive or additive manufacturing.

Subtractive Manufacturing (Milling):
A computer-controlled milling machine carves the restoration from a solid block of material, such as zirconia, lithium disilicate, or titanium, with robotic precision.

• Process: A robotic arm with fine burs systematically removes material from the block until only the designed restoration remains.
• Best for: High-strength, definitive restorations like crowns, bridges, and implant abutments, offering excellent surface finish and dimensional accuracy.

Additive Manufacturing (3D Printing):
In contrast to milling, 3D printing builds the restoration layer-by-layer from a liquid resin or powdered material.

• Process: The material is incrementally added and cured according to the digital file until the final form is achieved.
• Best for: Fabricating surgical guides, dental models, provisional restorations, and some denture frameworks. It is highly efficient for complex geometries and batch production.

The choice between milling and printing depends on the specific clinical application, material requirements, and desired outcome. Both methods excel at converting a digital blueprint into a highly accurate physical restoration, completing the digital workflow.

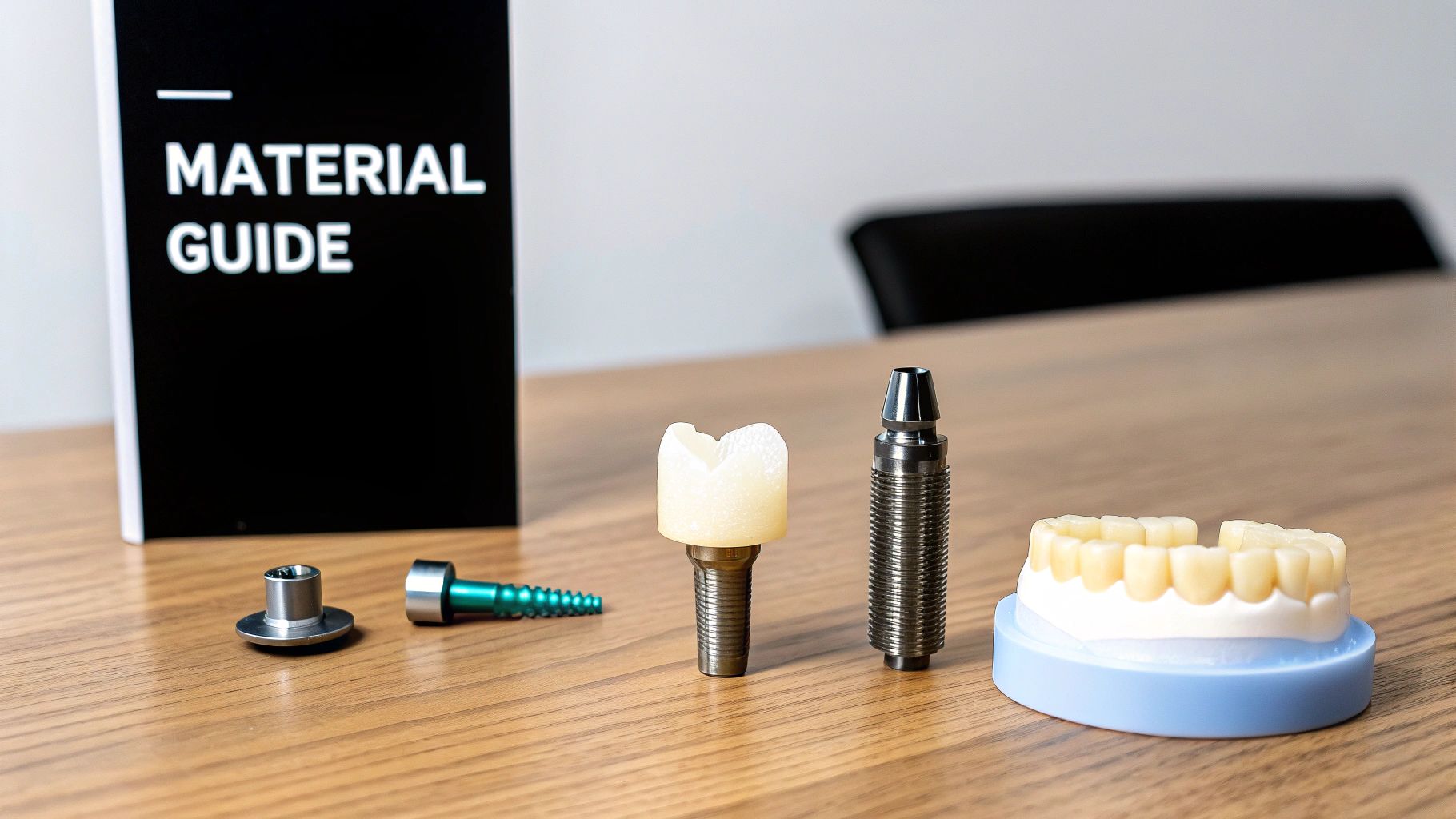

Choosing the Right Materials for Digital Dentistry

An optimized digital workflow is only one part of the equation in CAD/CAM Zahntechnik. The selection of the restorative material is equally critical for a successful clinical outcome. This decision influences durability, esthetics, and long-term biocompatibility, making it a crucial point of collaboration between the clinician and the laboratory.

Digital manufacturing has enabled the use of a wide range of advanced materials that were previously difficult or impossible to process. From high-strength ceramics to versatile polymers, each material offers a unique clinical profile. Understanding these properties is key to matching the material to the patient's specific needs.

High-Strength Ceramics for Permanent Restorations

For definitive restorations, high-strength ceramics are the materials of choice in digital dentistry. They provide an optimal balance of mechanical strength and esthetics, making them suitable for a broad range of applications.

• Zirconia (Zirconium Dioxide): Known for its exceptional strength and fracture resistance, zirconia is ideal for restorations in high-stress areas, such as posterior crowns and multi-unit bridges. Modern multi-layered zirconia blocks offer enhanced translucency, making them suitable for anterior restorations as well. Its high biocompatibility minimizes the risk of adverse tissue reactions.

• Lithium Disilicate: When esthetics are the primary consideration, this glass-ceramic is an excellent option. Its optical properties closely mimic natural tooth structure, making it a popular choice for anterior crowns, veneers, and inlays. While not as strong as zirconia, its flexural strength is more than adequate for single-unit restorations in the esthetic zone.

The selection often involves a trade-off: zirconia provides maximum durability, while lithium disilicate delivers superior esthetics for visible restorations. The final choice must be based on the specific clinical demands of the case.

A significant advantage of milling monolithic restorations from these materials is the elimination of the porcelain-metal interface, the weakest point in traditional PFM crowns. This results in stronger, more predictable restorations over time.

Polymers and Metals for Specialised Applications

Beyond permanent ceramics, CAD/CAM technology also processes other materials essential for various stages of treatment. For clinicians aiming to perfect prosthetic fit, understanding the variables affecting implant master cast accuracy is an excellent starting point.

Polymers like PMMA (Polymethyl Methacrylate) are widely used for milling durable, long-term provisional crowns and bridges. Biocompatible resins are also central to 3D printing, used to create surgical guides, custom impression trays, and detailed dental models.

Metals, particularly Titanium, remain the cornerstone of implant dentistry. CAD/CAM milling allows for the fabrication of custom abutments and frameworks with unparalleled precision. Alfa Gate offers a full portfolio of digital components for these workflows, including our versatile Ti-Bases for CAD/CAM restorations, which provide a stable and reliable foundation for screw-retained implant crowns.

Comparison of Common CAD CAM Dental Materials

This table summarizes the key characteristics of popular materials in digital dentistry to aid in selecting the optimal option for various clinical scenarios.

Material	Primary Indication	Flexural Strength (MPa)	Aesthetic Qualities	Manufacturing Process
Zirconia	Posterior crowns, bridges, implant abutments	900 - 1400	Good to excellent (improving translucency)	Milling
Lithium Disilicate	Anterior crowns, veneers, inlays/onlays	360 - 500	Excellent (highly translucent, natural look)	Milling, Pressing
Hybrid Ceramic	Inlays, onlays, single crowns (less brittle)	150 - 250	Very good (tooth-like wear)	Milling
PMMA	Temporary crowns & bridges, surgical guides	~100	Good (for temporaries)	Milling, 3D Printing
Titanium	Custom abutments, implant bars, frameworks	~830	N/A (subgingival/framework use)	Milling, SLM (Printing)

A thorough understanding of each material's properties enables dental teams to make informed decisions, ensuring restorations are not only well-fitting but also clinically sound and durable. If you have questions about integrating these components into your practice, please contact our team of experts.

Advancing Implant Prosthetics with Digital Precision

The impact of CAD/CAM technology is most profound in the demanding field of implant dentistry. The digital workflow achieves a level of accuracy for implant-supported restorations that is difficult to consistently replicate with traditional methods. This precision is not merely beneficial—it is fundamental to the long-term health and stability of the implant and surrounding tissues.

By eliminating variables such as impression material distortion and stone model expansion, the digital process ensures a predictable outcome. From the initial scan to the final restoration, maintaining a digital chain-of-custody allows for the creation of prosthetics with exceptional accuracy, leading directly to improved clinical success.

The Role of Scan Bodies and Digital Analogs

The foundation of a digital implant case is the precise three-dimensional position of the implant. This is captured using a scan body, a precision-engineered component attached to the implant or a laboratory analog. It is then scanned, either intraorally or with a desktop scanner.

The unique geometry of the scan body serves as a digital reference point. The CAD software recognizes its shape and orientation, allowing it to accurately replicate the implant’s position, depth, and angulation in the virtual design environment.

This digital data is then used in conjunction with a digital implant analog. The analog is placed into a 3D-printed model, creating a physical replica of the implant's position. This allows the laboratory technician to verify the fit and function of the final restoration on an accurate master cast before it is delivered to the clinic.

Designing for a Perfect Passive Fit

With the implant position accurately recorded, the technician can design custom abutments or screw-retained crowns. The primary objective is to achieve a passive fit, meaning the restoration seats fully onto the implant or abutment without inducing any stress or torque.

A non-passive fit is a significant clinical concern. It can create micromovements and place strain on the implant components and surrounding bone, increasing the risk of complications such as screw loosening, component fracture, and crestal bone loss. Digital design provides the control necessary to mitigate this risk.

Using CAD software, technicians can design esthetic restorations that are bonded to a Ti-Base. This titanium base ensures a precise, factory-machined connection to the implant. This approach combines the strength and reliability of a titanium interface with the esthetics of a custom-milled ceramic restoration. For additional clinical insights, understanding the variables that affect the accuracy of implant master casts is highly beneficial.

Streamlining the Workflow with Integrated Systems

This fully digital workflow is predictable, efficient, and exceptionally accurate. It reduces the need for chairside adjustments and remakes, saving valuable time for both the clinician and the patient.

Alfa Gate supports this modern approach with a complete range of digitally-ready prosthetic components. Our versatile Ti-Bases integrate seamlessly with major CAD/CAM systems, providing a solid foundation for any screw-retained crown or custom abutment. Combined with our high-precision scan bodies and digital analogs, the Alfa Gate system is engineered to help you achieve exceptional outcomes consistently.

Getting Started: Bringing Digital Workflows into Your Practice

Integrating digital dentistry into a practice or laboratory is a significant strategic decision. The question is no longer if one should adopt CAD/CAM Zahntechnik, but how to implement it effectively based on specific clinical needs, patient flow, and budget.

A primary consideration is whether to establish a complete in-house chairside system or to collaborate with a digitally-equipped dental laboratory. Each model offers distinct advantages and requires a different operational approach.

In-House Chairside vs. Lab Collaboration

An in-house system provides maximum control over the restorative process, enabling services like same-day crowns—a significant patient benefit and marketing advantage. However, this path requires a substantial upfront investment in equipment, along with ongoing costs for materials, maintenance, and team training.

Conversely, partnering with a digital dental laboratory eliminates the burden of equipment ownership. This allows practices to leverage the lab's expertise and access to a wider range of high-end materials and technologies without the capital expenditure. The trade-off is a longer turnaround time compared to single-visit restorations.

There is no universal solution. The optimal choice depends on the practice's clinical focus and business model. A high-volume restorative practice may find that a chairside system offers a rapid return on investment, while for others, the flexibility and lower entry cost of a laboratory partnership is more practical.

Key Technical Details to Consider

Once a path is chosen, technical specifications must be evaluated. A critical decision is the selection of an open or closed architecture system.

• Open Systems: These systems are designed for interoperability, allowing users to combine components from different manufacturers (e.g., a scanner from one brand with a milling unit from another). They utilize standard file formats like .STL, offering flexibility and cost-effectiveness.
• Closed Systems: These are proprietary ecosystems where all components—scanner, software, and mill—are from a single manufacturer and designed to work exclusively together. This ensures seamless integration and simplified support but limits choice.

The industry trend is moving towards open architecture. Alfa Gate designs its components, including our versatile Alfa Gate Ti-Bases, to be compatible with a wide range of open systems, providing clinicians and laboratories with the freedom to customize their workflows.

This digital shift is fueling significant market growth. The German dental care market, for example, is projected to grow from USD 1,588.20 million in 2024 to USD 2,436.50 million by 2032, driven largely by the adoption of digital technologies. You can find more insights about the German dental market on credenceresearch.com.

Common Hiccups and Quality Control

Achieving consistent, high-quality output requires meticulous attention to detail and robust quality control protocols. Common issues often relate to equipment calibration, design parameters, and material handling.

Regular calibration of scanners and milling units is essential for maintaining accuracy. Design parameters, such as cement gaps and margin thickness, must be optimized to minimize remakes. Proper material storage and post-processing are also critical to ensure the final restoration's mechanical and esthetic properties. Implementing a comprehensive quality control checklist is a best practice for any digital workflow.

The Future of CAD/CAM and AI in Dentistry

The evolution of dental technology is accelerating. The next frontier for CAD/CAM in dentistry is the integration of Artificial Intelligence (AI), which promises to elevate design and diagnostic capabilities to new levels. This is no longer a futuristic concept but a present-day reality that is beginning to reshape workflows in progressive laboratories and clinics.

AI can be viewed as an intelligent assistant to the dental technician. Imagine design software that not only provides tools but also offers automated suggestions based on patient-specific data. By analyzing CBCT scans and intraoral images, AI algorithms can propose ideal crown morphologies, predict occlusal schemes, and automatically detect margin lines with high accuracy. This automation streamlines repetitive tasks, allowing skilled technicians to focus on the most complex and esthetically demanding aspects of a case.

Smarter Designs and Predictive Outcomes

AI's true power lies in its ability to learn from vast datasets. By analyzing thousands of successful cases, it can identify patterns that lead to optimal clinical outcomes. For clinicians, this means receiving design proposals that are pre-validated for both function and esthetics, enhancing the predictability of the final restoration.

AI-guided design is poised to improve several key areas:

• Automated Smile Design: AI can generate realistic smile simulations based on a patient's unique facial features, improving patient communication and case acceptance.
• Predictive Analytics: By cross-referencing patient data with material properties, AI can identify high-stress areas in a bridge design and suggest modifications to prevent future fractures.
• Quality Control: AI-powered software can automatically scan final designs for microscopic flaws that might be missed by the human eye, ensuring every restoration meets the highest quality standards.

AI is not intended to replace the expertise of the dental technician but to augment it. It is a powerful tool that manages data-intensive tasks, allowing human creativity and clinical judgment to be applied where they are most valuable.

Innovations in Materials and Manufacturing

Manufacturing processes are also evolving. While milling remains the standard for high-strength ceramics, 3D printing is rapidly gaining prominence. Advances in polymer and ceramic resins are enabling the printing of definitive restorations like crowns and dentures with excellent durability and esthetics. This additive manufacturing process also reduces material waste and allows for the creation of complex internal geometries that are impossible to mill.

As these technologies mature, they will become increasingly interconnected, creating a more intelligent and efficient ecosystem. Navigating this next generation of digital dentistry requires a partner with deep expertise in both clinical and technological domains. At Alfa Gate, we are committed to providing digitally-compatible implant solutions designed for the future.

Explore our full range of prosthetic components or learn more about how to become a distributor to partner with a company shaping the future of dentistry.

A Few Common Questions

Here are answers to practical questions that frequently arise when clinicians and laboratories explore CAD/CAM Zahntechnik.

What’s the Real Difference Between an Open and a Closed CAD/CAM System?

An open CAD/CAM system is analogous to an Android operating system—it is built for interoperability. You can combine components from different manufacturers, such as a scanner from one brand and a milling machine from another, as long as they communicate via standard file formats like .STL. This provides flexibility and is often more cost-effective.

A closed system is like Apple's ecosystem. All components—scanner, software, and mill—are from the same manufacturer and designed to work exclusively together. This ensures seamless integration and a single point of contact for support but limits component choice. The industry is currently trending towards the flexibility offered by open architecture.

How Does CAD/CAM Actually Make Implant Restorations Fit Better?

The improved fit is a direct result of repeatable, high-level precision. Digital impressions eliminate the physical distortions inherent in conventional PVS materials, providing a perfect virtual starting point. Design software then allows technicians to control the fit of the restoration at a micron level.

Finally, computer-guided milling or 3D printing translates this exact digital blueprint into a physical object with an accuracy that is unattainable by hand. This entire process is geared toward achieving a passive fit, where the prosthesis seats on the implant or abutment without inducing stress. Achieving a passive fit is critical for the long-term health of the implant and surrounding bone. We explore this further in our article on the variables affecting implant master cast accuracy.

Is an In-House Chairside CAD/CAM System a Smart Investment?

It can be a very smart investment, but it depends on the practice's specific circumstances. The primary benefit is the ability to offer same-day restorations, which enhances patient satisfaction and provides a strong marketing advantage.

However, it requires a significant upfront investment in a scanner and milling unit, plus ongoing costs for materials and team training. For practices with a high volume of restorative cases, the return on investment can be substantial. For others, partnering with a high-quality digital dental laboratory that offers a wider range of materials and expertise may be a more financially sound decision. This business decision should align with the practice's long-term strategic goals.

---
